A NEW GENERATION OF INTERLOCKING ROOFING SHEETS

Weckman Progantti J is the latest masterpiece of Finnish tinsmith know-how – the most advanced interlocking roofing sheet on the market.

Innovative construction solutions make Prograntti the quietest and best ventilated roof. Interlocking roof sheet perfected to every detail. Its unique installation system and composed elegance guarantee good results for any roof.

Available in quality class Premium 50.

Spruce green RR11
Grey RR21
Dark grey
RR23
Red RR29
Dark brown RR32
Black RR33
Tile Red RR750

IMPRESSIVE AND TOP-QUALITY WECKMAN PROGANTTI

QUIET

The Progantti roof package is quiet.

VENTILATED

The roof is ventilated according to regulations in all conditions.

WATERPROOF ALSO ON A GENTLY SLOPING ROOF

The seam construction guarantees waterproof roofs with inclinations as low as 1:8 without additional seals.

DURABLE


DURABLE

Progantti roofing sheet made of extra strong 320 quality structural steel. Durability classification of up to 50 years.

A BEAUTIFUL ROOF

Thanks to its perfected details, Progantti makes a beautiful roof.

EASY TO INSTALL

The advanced interlocking structure facilitates installation.

TECHNICAL INFORMATION AND ROOF ACCESSORIES

Weckman Progantti J

Weckman Progantti J

Nominal effective width

475 mm

Total width

¨505 mm

Minimum length

1500 mm

Maximum length

15500 mm

Profile height

29 mm

Raw material

0,5 tai 0,6 mm structural steel

Steel quality

S280GD+Z

Fire rating

BROOF (RakMk E1)

Minimum recommended roof inclination

1:8

Rib interval

300 mm

Dimensions according to SFS-EN 508-1 tolerances

Exclusively from Weckman

The WECKMAN side fastening solution allows free thermal expansion of the roofing material and reduces wrinkling of the material and resulting noise.

The WECKMAN ventilation system ensures sufficient ventilation of the roof in Weckman’s ridge structure even in cold weather. Moisture escapes through the ridge without condensing on the underside of the roofing, minimising the risk of damage to the underlying structures.

Installation accessories for Weckman Progantti roof

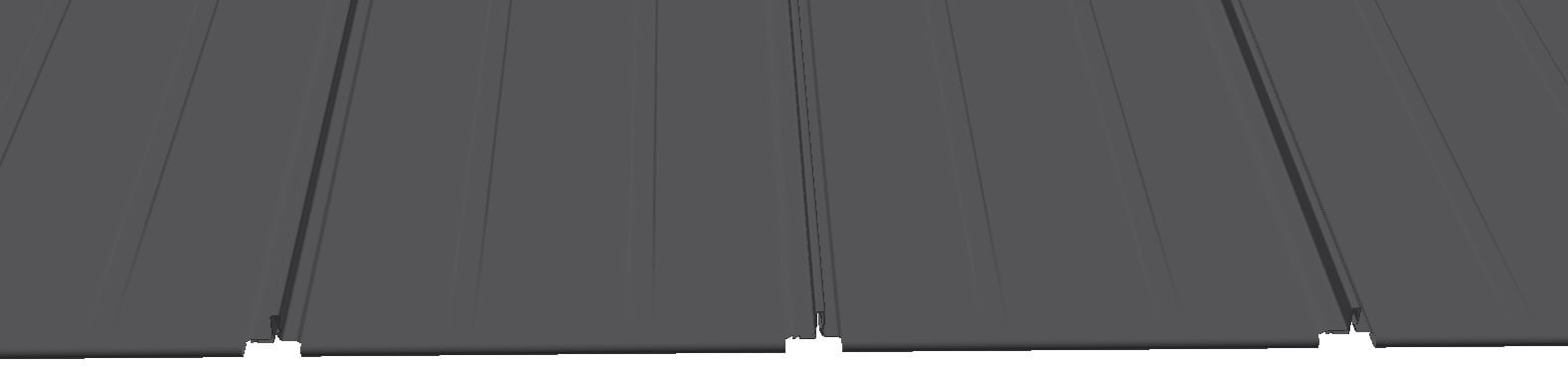

Progantti roofing sheet

Effective width 475 mm.

Wide ridge capping L=2 m

The widest ridge capping on the market makes installation easy and gives margins.

Ridge seal L~464 mm

Improves the ventilation of the roof. Colour RR23.

Gable flashing L=length of the roof (up to 10 m only with Progantti orders)

Flashing the same length as the roof (max. 10 m) in one piece without seams.

Lower eaves flashing L=2 m

Adjustable lower eaves flashing that facilitates the installation of gutters and controls the eaves line.

Mitre plate, full width L = 2 m

Full-width mitre plate that ensures waterproofness even in gently sloping Progantti roofs.

Gasket tape

For the sealing of mitres. With adhesive surface.

Damping strip

Reduces noise caused by wind, quick and easy to install.

End-wall flashing to the side L=2 m

For roof-to-wall connections.

End-wall flashing L=2 m

Available pre-bent to the correct angle.

Lower flashing, galvanised L=2 m

Necessary at the eaves under the gable flashing – keeps the gable boards dry.

Drain/radon ventilation pipe

Insulated 110. Complete set, includes Progantti lead-through.

Ventilation outlet pipe

Insulated 125/160 mm. Complete set, includes Progantti lead-through.

Lead-through rubber

25-70 mm, 50-100 mm, 90-150 mm, 125-200 mm

Roof hatch

Passage size 600 x 600 mm. Includes hinges and lock.

Ventilation spring

Keeps the ventilation channels open in a ventilated ridge construction also in winter conditions.

Side fastener, galvanised

Allows free thermal movements at the edge of the roof, prevents wrinkling and noise.

Upper eaves flashing L=2 m

For pent roof ridges. Available pre-bent to the correct angle.

Hip seal flashing L = 2 m

Perforated sealing flashing that prevents snow and water from entering the underlying structures and improves ventilation. Colour RR23.

Roofing screws 4.8 x 28

For attaching the bottom edge of mitre-cut roofing sheets and flashings.

Progantti-screws RST 4,2 x 25

Guaranteed durability and safety

Finish your Weckman roof with an impressive and practical drainage system. Trough gutters and gutter pipes are manufactured of hot galvanised steel, which is Pural-coated on both sides. The benefits of the coating are excellent corrosion resistance, good cleanability and durable appearance. Standard colours: white, red, dark grey, dark brown and black .

DIMENSIONS

Down pipe

Down pipe set for 3.0-metre eaves, eaves-heights of over 3 metres with extension parts.

Trough gutter

Standard length

Standard length Standard length 3.0 m, 4.0 m or 5.0 m. Outer bracket and overlap piece as standard.

P13 Trough gutter

P13 End piece

P13 Gutter bracket, short

P13 Gutter bracket, long

P13 Gutter bracket, angled (1:3; 1:2,5; 1:1,15)

P13 Overlap piece

P13 Gutter discharge

P13 Inner corner

P13 Outer corner

P10 Upper bend

P10 Lower bend

P10 Discharge pipe

P10 Downspout fastener

P10 Diversion

P13 Downspout pipe 1.0 m and 2.3 m

Safe and durable Weckman roof safety accessories

Wall ladders guarantee safe entry onto the roof. A roof bridge ensures a safe passage on the roof in connection with, e.g., chimney sweeping, snow dropping, antenna installations and other tasks on the roof. Snow breakers are designed to prevent damage caused by snow dropping and to protect the roof coating. All roof safety accessories are reliable and high-quality Finnish products.

Ladders

Weckman ladders are made of hot galvanised oval tubes without weldings. The steps are round tubes. Wall ladders come in powder-coated or galvanised styles and roof ladders are only available powder-coated.Standard colours for roof and wall ladders: white, red, dark grey, dark brown and black.

ROOF LADDER

Standard lengths 1,2m, 2,7m, 3,3m, 4,2m, 4,5m, 5,4m, 6m, 6,6m, 7,5m, 8,4m. The ladder set includes the ladder frame and wall mounts.

WALL LADDER

Standard lengths 1,2m, 2,7m, 3,3m, 4,2m, 4,5m, 5,4m, 6m, 6,6m, 7,5m, 8,4m. The ladder set includes upper arcs for the ladder frame and wall mounts (for an eaves width of 85–100 cm).

SAFETY LADDER

1,2m, 2,7m, 3,3m, 4,2m, 4,5m, 5,4m, 6m, 6,6m, 7,5m, 8,4m. Includes the ladder frame and wall mounts.

Roof bridge

A roof bridge can also be used for the construction of work platforms and stairs on the roof. Weckman roof bridges are safe, have a snow permeation capacity of over 50% and are classified as class 2, allowing the fastening of safety ropes. The roof bridges are powder coated. Roof profile-specific roof mounts. Standard colours: dark grey, red, dark brown, black, tile red.

ROOF BRIDGE

Standard lengths 1.21 m (3 roof mounts), 2.47 m (3 roof mounts) and 2.97 m (4 roof mounts).

Snow breaker

In Finnish conditions, snow breakers are necessary where people pass by.Weckman tube snow breakers are made of hot galvanised steel.The snow breaker is delivered either galvanised or powder-coated.Two oval tubes, four roof mounts according to the roof sheet.Standard colours: dark grey, red, dark brown, black, tile red.

SNOW BREAKER

3000 mm

Instructions for roof maintenance (Pdf 4,71 Mt)
Weckman Progantti sheets: DoP.606/13 (Pdf 482,80 kb)
Weckman Progantti sectional views PDF (Pdf 35,81 kt)
Minimum roof inclinations
Weckman drainage systems and roof safety accessories, installation instructions
Weckman Progantti installation video
Weckman Progantti sheets, installation instructions (Pdf 1,51 Mt)

Weckman quality is ensured by manufacture according to the ISO9001 quality system. Weckman quality can also be identified by the CE certification, as all of our steel products fulfil the requirements of standards SFS-EN 14783:2006andSFS-EN 1090-1:2009+A1:2011. Each of our employees has taken on our goal of keeping work high-quality and faultless.

Weckman Premium 50

Weckman Standard 40

About Weckman Progantti
