Robust frame, durable and spacious trailer bed

Thanks to the frame and platform structure with high torsional rigidity, the earthmoving trailer is durable and long-lasting. The frame and the platform are made of tubular beams. The extremely durable bottom plate made of abrasion-resistant steel withstands the loading stresses of the trailer and the flexes, which prevents permanent deformation.

The frame parts are dip-coated/spray painted depending on the model, and the platforms are spray-painted.

The long towbar also improves the manoeuvrability of the trailer when it’s running on twin wheels.

The sides and bottom are made of abrasion-resistant Hardox steel

In Weckman trailers, the structure of the sides ensures tightness even with finer materials. The sides of the earthmoving trolleys are made of 4 mm and the bottom is made of 6 mm thick Hardox wear-resistant steel. The side materials are flexible, which ensures that the platform retains its shape. The support beam along the top adds sturdiness.

The standard side height of the Weckman WS DG trailers is 65–80 cm. The high front side improves occupational safety. The volume of the platform can be increased significantly by a grain cassette available as an accessory.

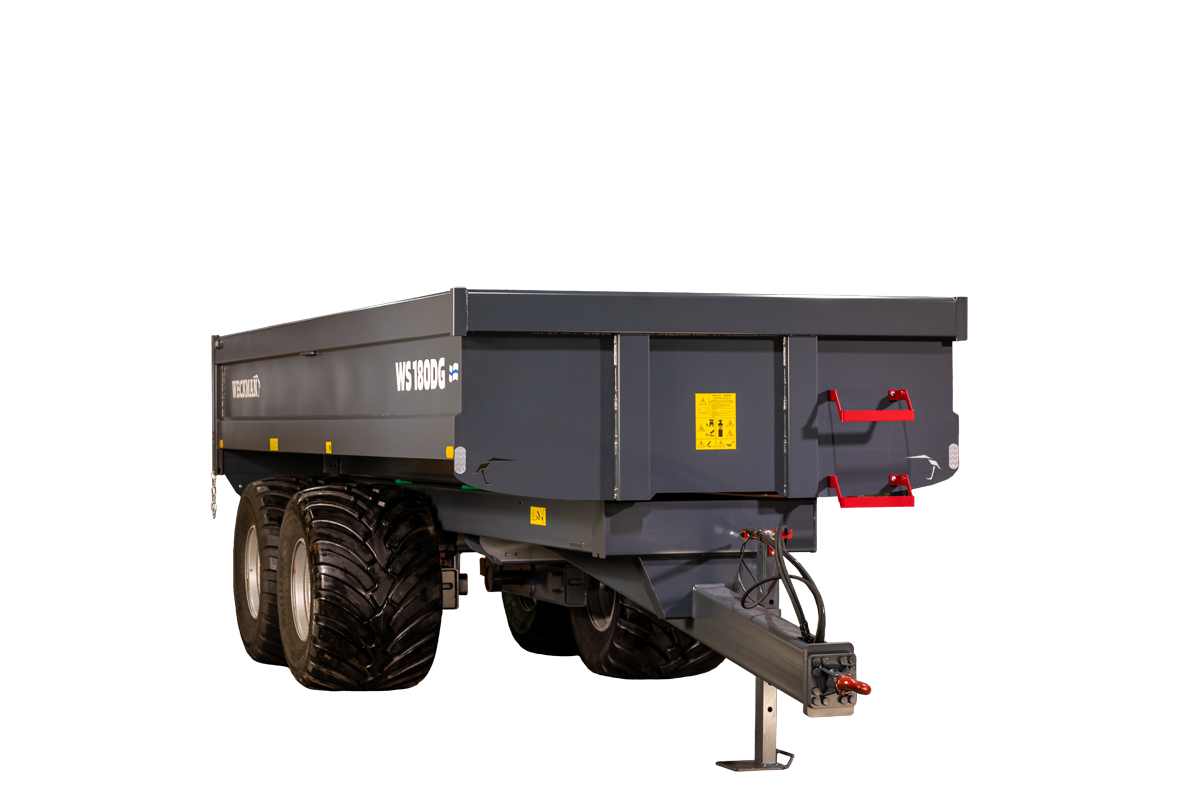

The tailgate of the earthmoving WS130 DG and WS180 DG trailers is hydraulically operated and opens downwards. The trailer is also delivered with a gravel tail gate that can be used, for example, for spreading a gravel bed. For increased safety, the hydraulic drop-down gate is equipped with a dual-lock valve.

Earthmoving trailers with a sturdy bogie with high ground clearance

The Weckman trailer has a symmetrical bogie design, in which the middle axle is lower than the hub axles, enabling the trailer to pass over obstacles easily, which helps to keep the load stable. The trailers have high ground clearance, since the sturdy bogie does not need any additional support.
